To find overheated MC4 connectors before they escalate, inspect the whole plant with thermography taken in suitable conditions, add a close or side view where the connector is hidden behind the module, locate every hot connector by table, string and position, and treat each one as a work order that is only closed when new evidence shows the repair. Detection supports prevention; it does not guarantee that no incident will happen.
Why an MC4 connector overheats
A connector overheats when current passes through a point with more electrical resistance than it should have. The usual causes are well known in the sector:
- Faulty crimping of the contact onto the cable during installation.
- Mixed connectors: male and female halves from different manufacturers mated together, even when they look compatible.
- Water or dirt ingress through a poorly closed or damaged connector.
- Loose connections that were never fully engaged or have worked loose with thermal cycling and vibration.
- Mechanical damage: strained cables, crushed housings or connectors resting on sharp edges.
The extra resistance produces heat, the heat degrades the materials, and the degradation increases the resistance. Our article on fire prevention in large-scale PV plants explains how these latent defects can end in a DC arc.
Why they are hard to find
Connectors sit behind the modules, often clipped to the structure or hanging between tables. In a top-down thermal image the module covers them, so a hot connector may not appear at all, or only as a faint mark at the edge of the module. A walk-down inspection can find them, but checking thousands of connectors by hand takes days of field time, and the result depends on who does it and when.
How to locate them reliably
- Thermography in suitable conditions. A hot connector only stands out when the string is carrying current, so capture with sufficient irradiance and stable weather, following recognised conditions such as those of IEC TS 62446-3.

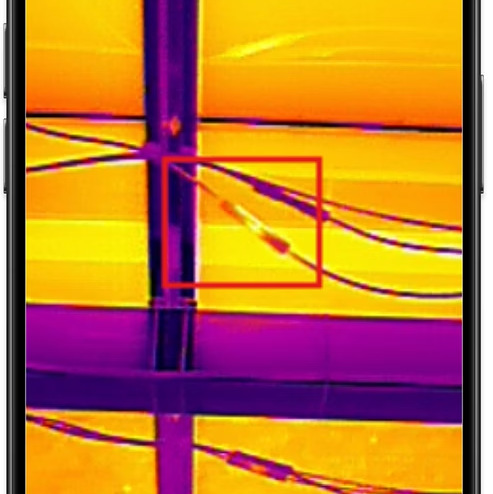

- The right viewpoint. Where the connector is hidden from above, add a close or side capture of the rear of the table instead of relying on the top-down view alone.
- Location at component level. Every hot connector must be tied to its table, string and position, with the visual and thermal image and the date, so a technician can go straight to it.
- Full coverage and explicit scope. Inspect every table in the agreed scope and state which areas could not be evaluated.
How to prioritise
Not every warm connector needs the same response. A practical criterion combines three factors:
- Temperature difference compared with similar connectors on the same string under the same conditions, rather than an absolute value that depends on irradiance and ambient temperature.
- Surroundings: dry vegetation, combustible material or cable bundles near the connector raise the consequence of a failure.
- Exposure: how much current and how many modules the connector carries, and whether it is in an area that is hard to reach quickly.
With those factors, each finding gets a level: urgent corrective, non-urgent corrective or preventive. Thresholds depend on the plant, the connector type and the operator's procedures; what matters is that the criterion is explicit and applied the same way across the portfolio.
From finding to verified repair
A hot connector that is detected but not repaired is still a risk. Each finding should become a work order that moves through clear states: open, assigned, in progress, pending validation and closed. The technician records the repair with a photo, and the order is only closed when a supervisor validates it, ideally with a new thermal image of the same connector under load.
Checklist for O&M teams
- Inspect the whole plant, not a sample, and record the areas not evaluated.
- Capture thermography with sufficient irradiance and the string under load.
- Add a close or side view where connectors are hidden behind the modules.
- Locate each hot connector by table, string and position, with visual and thermal evidence.
- Compare with similar connectors on the same string before deciding the priority.
- Take surroundings and exposure into account, not only temperature.
- Replace connectors in matched pairs from the same manufacturer and check the crimping.
- Close each work order only with post-repair evidence validated by a supervisor.
- Re-inspect the same connectors in the next campaign to confirm the problem has not returned.
